The Best Concrete Products for Salt Storage Buildings
Storing road salt safely and efficiently is essential. Salt is highly corrosive, and if not stored properly, it can clump, harden into crusts, or leach into the environment. That’s why salt barns and depots are usually designed with sturdy precast concrete walls and a pitched or domed roof to keep the stockpile dry and accessible.
When we design and supply concrete for salt storage buildings, the goal is simple: maximise storage capacity, protect the salt from weather, and create walls capable of withstanding the pressure of bulk material handling. Below are the most common precast solutions we recommend.
Precast Concrete Panels
Prestressed panels are a popular choice because they can be installed horizontally between steel posts or vertically cast into a concrete base. They’re manufactured under factory conditions, with standard thicknesses ranging from 150mm to 280mm, and can span up to 6.5m in length.
For salt storage, thicker panels are typically preferred for durability and load capacity. Panels are supplied with fixing plates and lifting anchors for safe handling. They’re quick to install, easy to replace if damaged, and provide a smooth internal face to prevent salt build-up.
Ideal for: lining the inside of steel-framed salt barns, where continuous walls with minimal joints are required.
Cantilever Retaining Walls
Cast-in L-shaped walls are a proven system for salt barns. The reinforcement from the toe is integrated into the new floor slab, securing the units as the concrete cures. This creates a permanent structure with no exposed steel, reducing the risk of corrosion from salt.
Units are available in heights up to 3.75m (standard) or 5m (heavy-duty), with surcharge capacities of 10 kN/m² (standard) or 20 kN/m² (heavy-duty).
For projects that require bolt-down units, stainless-steel fixings can be specified.
Ideal for: permanent salt depots and high-capacity barns where walls bear loads on both sides.

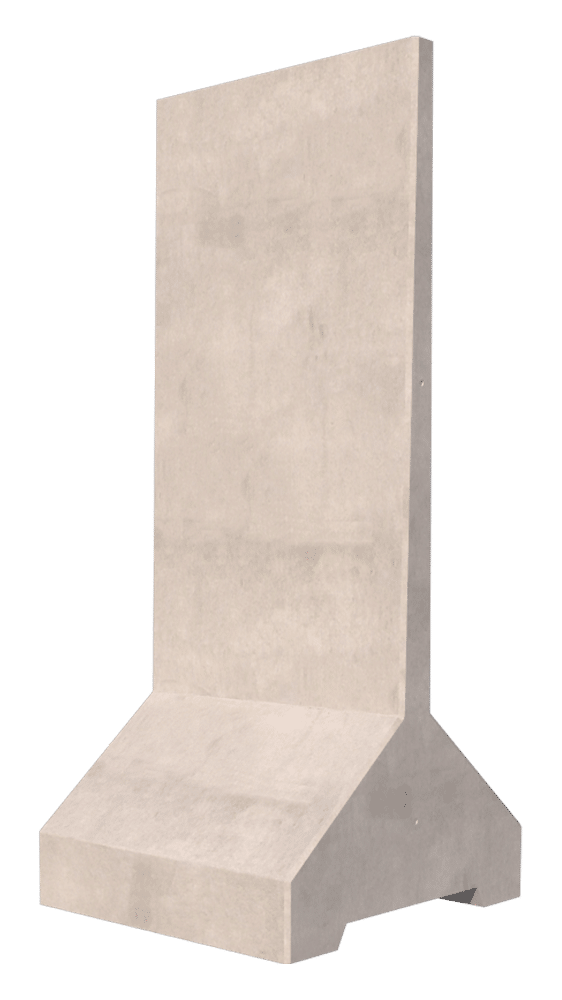

Freestanding Retaining Walls
For flexible or temporary layouts, freestanding walls provide an easy solution. These walls depend on their own weight for stability and can be moved as storage needs change. They don’t need ground fixings or foundations, but must be placed on a solid, level base.
Freestanding units range in height from 1.5m to 3.5m and can be supplied with internal corners for bay layouts.
Ideal for: creating dividing walls inside barns or where salt storage layouts need to be reconfigured regularly.
Allegro® Interlocking Concrete Blocks
For temporary or modular salt storage, interlocking Allegro® blocks are among the fastest and most versatile options. They can be stacked to create dividing walls or entire bays and repositioned using standard site plant as needs change.
Interlocking concrete blocks can safely retain bulk materials with level fill and can handle surcharge loads of up to 20 kN/m² depending on wall height and layout. Their flexibility makes them ideal for smaller depots or seasonal salt storage where a permanent structure isn’t necessary.
Ideal for: short-term or expandable storage bays.
Why Precast Concrete is the Right Choice
All of our precast systems are designed to current Eurocode standards (EN 1992), with a minimum 30mm reinforcement cover to meet durability requirements in aggressive environments such as salt storage. For long-term projects, thicker panels or heavy-duty cast-in walls can be specified to extend design life and resist chemical exposure.
Precast also offers the benefit of speed: units arrive ready to install, minimising downtime and helping local authorities and contractors prepare in advance of winter road maintenance programmes.
Concrete Options for Salt Storage Buildings – At a Glance
| Product Type | Typical Heights | Load Capacity | Fixings / Foundations | Best for | Key Benefits |
|---|---|---|---|---|---|
| Prestressed Concrete Panels | 1.0–6.5m (span length) | Up to 10 kN/m² surcharge (depending on thickness) | Horizontal between steel posts or vertically cast into slab | Salt barns with steel frames | Fast install, replaceable panels, smooth finish |
| Precast Retaining Walls (Cast-in & Heavy-Duty) | 1.0–3.75m (standard) 1.0–5.0m (HD) | 10 kN/m² (standard) 20 kN/m² (HD) | Cast into new RC floor slab | Permanent salt depots | Long design life, no exposed fixings, handles heavy loads |
| Freestanding Retaining Walls | 1.5–3.5m | Retains level fill only (no surcharge) | Self-weight stability, placed on slab | Temporary or reconfigurable layouts | Movable, no fixings needed, quick bay creation |
| Allegro® Interlocking Blocks | Stackable – typical walls up to 3.6m | Retains bulk fill, surcharge capacity up to 20 kN/m² (layout dependent) | Placed on solid base, interlocking joints | Seasonal or flexible storage | Highly versatile, reusable, rapid installation |
FAQs About Concrete Salt Storage Buildings
Â
01. What type of concrete walls are best for salt storage?
The right choice depends on your site and the level of permanence required for the structure.
For large depots, cast-in precast retaining walls or heavy-duty walls give the most durability and can handle high surcharge loads.
For steel-framed barns, prestressed concrete panels are quickly installed and provide a smooth, continuous finish.
For smaller or flexible depots, freestanding units or Allegro® blocks are ideal because they can be moved and reconfigured.
02. How high should salt storage walls be?
Most salt barns use walls between 2m and 3.75m high to store bulk road salt safely and maximise capacity under the roof structure.
For higher-volume depots, L-shape retaining walls and prestressed panels can be supplied up to 5m. The correct height depends on your stockpile size, the barn design, and safe access for loading equipment.
03. How does salt affect concrete walls?Â
Salt is corrosive, especially in damp environments. That’s why precast products for salt storage are manufactured with a minimum reinforcement cover of 30mm and designed to Eurocode exposure classes for aggressive environments.
In permanent depots, stainless steel fixings can be specified to prevent corrosion. Using the right wall type ensures long service life with minimal maintenance.
Talk to Us About Salt Storage Projects
Every site has its own constraints – from ground conditions to available space. If you’re planning a new salt barn or upgrading an existing depot, we’ll help you select the right precast system to optimise durability, cost, and installation time.
Get in touch with our team today to discuss your project and find the best concrete products for your salt storage building.
